EPON OLT , 2 SFP PON ports , 2 x 1000M RJ45 ports and 1 x 10/100M RJ45 ports

EPON OLT , 2 SFP PON ports , 2x1000M RJ45 ports and 1×10/100M RJ45 ports


– Supply 2 SFP PON ports, 2 1000M RJ45 ports, 1 10/100M RJ45 management port
– Support SNMP management and WEB management
– Each PON port support 1.32 split ratio, total 64 ONUs access,maximum 128
– Distance can reach 20km under 1:32 split ratio,maximum 1:64
– Support to work with ONUs to establish passive network
– 1U rack design, inside fan,better for heat dissipating and reliability operating
– Apply for town,village fiber network and surveillance, apply for FTTX network, to
transmit IP phone, data,IPTV and other IP services access

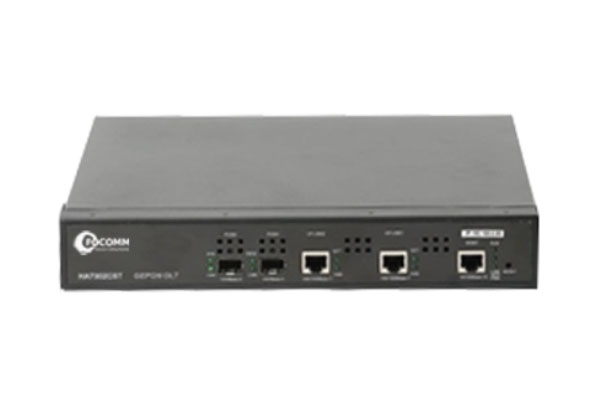

FO-7302CST is a standalone 2-PON OLT,working series ONU and ODN, to establish a passive optic network. It supports 2-PON,
64 ONUs access (maximum 128). It supports 10~20km transmission distance at the base of high bandwidth, full line speed
L2/L3 transition capacity. It supports WEB/SNMP/CLI management.
1000M point to multi-point optic passive network
