FEATURE
– Supply 4 SFP PON ports, 4 1000M uplink ports
– one 10/100M R.J45 management port, one console port
– Each PON port support 1:64 split ratio, total 256 ONUs
– Distance can reach 20km under 1:32 split ratio, 10km under 1:64
– Support to work ONUs to establish passive network
– Apply for town,village fiber network and surveillance, apply for FTTX
network, to transmit IP phone, data,IPTV and other IP services access

OVERVIEW

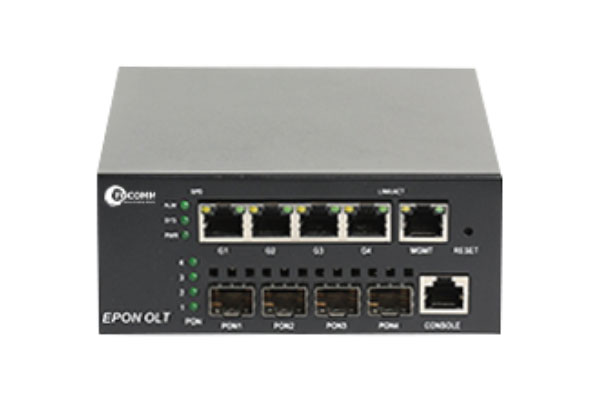

FO-7004S is mini standalone type 4PON OLT,supplies 4 SFP PON ports,4 Gigabit RJ45 uplink ports . It works with FO-7004S series ONU and ODN,
to establish a passive optic network. The whole system supports 4-PON, 256 ONUs. It supports 10~20km transmission distance at the base of high
bandwidth, and supports full line speed L2/L3 transition capacity.
Each PON system supports maximum 256 Logical Link Identifiers (LLID) and 1.25Gbps bandwidth independently. It adapts to counties, towns and
villages fiber network access. It is also adapt to FTTH/FTTB/FTTO projects, to implement fiber to the home, such as IP phone, Ethernet data and IPTV
services access.

APPLICATION
1000M point to multi-point optic passive network
