FEATURE
– Supply 4 SFP PON ports, 2 1000M SFP uplink ports, 2 Combo uplink ports
– Each PON port support 1.64 split ratio, total 1256 ONUs access
– Distance can reach 20km under 1:32 split ratio, 10km under 1:64
– Support to work with series ONUs to establish passive network
– Support WEB and SNMP, integrate switching function
– Apply for town,village fiber network and surveillance, apply for FTTX
network, to transmit IP phone, data,IPTV and other IP services access

OVERVIEW

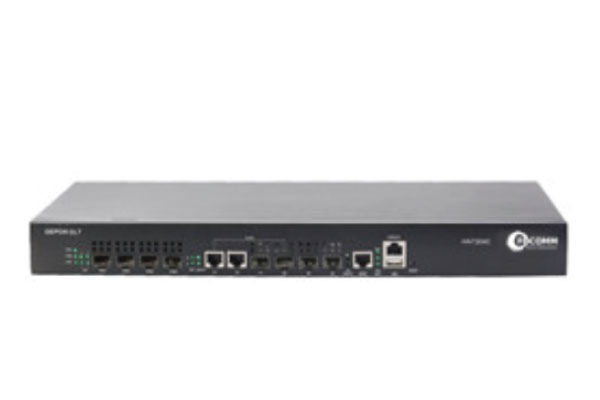

FO-7304C is a small 1U rack type 4 SFP PON ports OLT.FO-7304C works with series ONU and ODN, to establish a passive optic network.
The whole system supports 4-PON, 256 ONUs.
FO-7304C applies to counties, towns and villages fiber network access. It is also applied to FTTH/FTTB/FTTO projects, for IP phone,
Ethernet data and IPTV services access. It supports SNMP management. FO-7304C meets China Telecom EPON standards.
APPLICATION
1000M point to multi-point optic passive network
