OVERVIEW

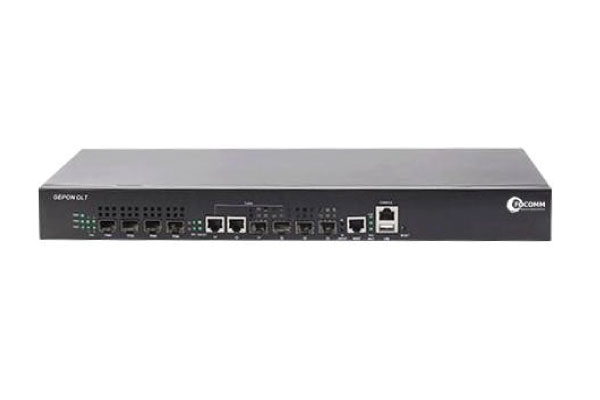

FO-7304C-BP is a small 1U rack type 4 SFP PON ports OLT. FO-7304C-BP
works with series ONU to establish a passive optic network. The whole
system supports 4-PON, 256 ONUs.
FO-7304C-BP applies to counties, towns and villages fiber network access.
It is also applied to FTTH/FTTB/FTTO projects , for IP phone, Ethernet data
and IPTV services access. It supports SNMP management.FO-7304C meets
EPON standards.
FEATURE
– Supply 4 SFP PON ports, 2 x 1000M SFP uplink ports, 2 Combo uplink ports
– Each PON port support 1.64 split ratio, total 1256 ONUs access
– Distance can reach 20km under 1: 32 split ratio, 10km under 1 :64
– Support to work with HA400/HA7200 series ONUs to establish passive network
– Support WEB and SNMP, integrate switching function
– 1U rack design, inside fan, better for heat dissipating and reliability operating
– Apply for town,village fiber network and surveillance, apply for FTTX network, to
transmit IP phone, data,IPTV and other IP services access
APPLICATION
1000M point to multi-point optic passive network
