Industrial Web Smart Managed POE Switch 8×10/100/1000M RJ45 ports and 2xGigabit SFP

Industrial Web Smart Managed POE Switch 8x10/100/1000M RJ45 ports and 2xGigabit SFP


The IPS-8GT-2SFP is an industrial grade PoE switch equipped with
8 Gigabit Ethernet adaptive electrical ports and 2 Gigabit optical ports,

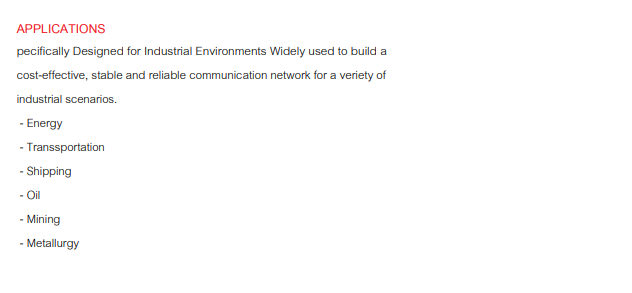

which is suitable for intelligent transportation, rail transportation, power
industry, mining, petroleum, shipping, metallurgy, green energy
construction and other industry scenarios, and can operate stably for
a long time in various harsh usage environments. Operating temperature
-40 C to + 75 ‘C, support wide voltage dual power input, support web
management, meet IP30 protection degree and EMC industrial grade
requirements, DIN rail installation, pass through dangerous environmental
certification and comply with FCC and CE standards.The reliable industrial
grade design could ensure continuous and stable operation of the automation
system. Support IGMP Snooping/Link Aggregation/Static link aggregation/
Port Mirroring/Port isolation/Port grouping/ STP/RSTP Spanning Tree
Protocol/QoS, and so on.
– Provide 8 10/100/1000Mbps RJ45 ports, 2 10/100/1000Mbps SFP fiber ports.
– Support IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab, 802.3af,802.3at.
– 8 PoE ports support 802.3af/at, per port up to 30W Poe power budget.
– Support static MAC address, filtered MAC address, dynamic MAC
binding and other address table management functions.
– Support port secunity control, broadcast storm suppression and other
– Provides easy-to-use WEB visual management.
– Two power inputs, redundant backup, greatly improving the reliability
of product power supply.
