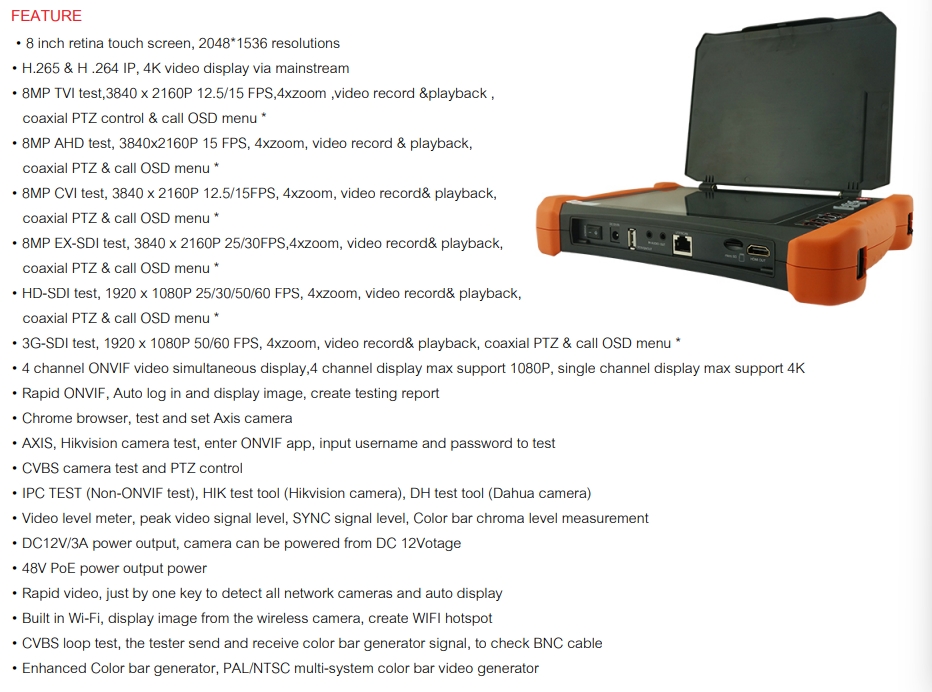

FEATURE
ㆍ8 inch retina touch screen, 2048*1536 resolutions
ㆍH.265 & H .264 IP, 4K video display via mainstream
ㆍ8MP TVI test 3840 x 2160P 12.5/15 FPS,4xzoom ,video record &playback
coaxial PTZ control & call OSD menu *
ㆍ8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback,
coaxial PTZ & call OSD menu *
ㆍ8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record& playback,
coaxial PTZ & call OSD menu *
ㆍ8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record& playback,
coaxial PTZ & call OSD menu*
ㆍHD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record& playback,
coaxial PTZ & call OSD menu *
ㆍ3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
ㆍ4 channel ONVIF video simultaneous display,4 channel display max support 1080P, single channel display max support 4K
ㆍRapid ONVIF, Auto log in and display image, create testing report
ㆍChrome browser, test and set Axis camera
ㆍAXIS, Hikvision camera test, enter ONVIF app, input username and password to test
ㆍCVBS camera test and PTZ control
ㆍIPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
ㆍVideo level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
ㆍDC12V/3A power output, camera can be powered from DC 12Votage
ㆍ48V PoE power output power
ㆍRapid video, just by one key to detect all network cameras and auto display
ㆍBuilt in Wi-Fi, display image from the wireless camera, create WIFI hotspot
ㆍ CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable
ㆍEnhanced Color bar generator, PAL/NTSC multi-system color bar video generator
