POE Splitter

PoE Splitter Dual Output 25.5 W, 10/100/1000Mbps; 2x RJ45 ports, 1x DC port; 5V/ 12V DC output

PoE Splitter Dual Output 25.5 W, 10/100/1000Mbps; 2x RJ45 ports, 1x DC port; 5V/ 12V DC output

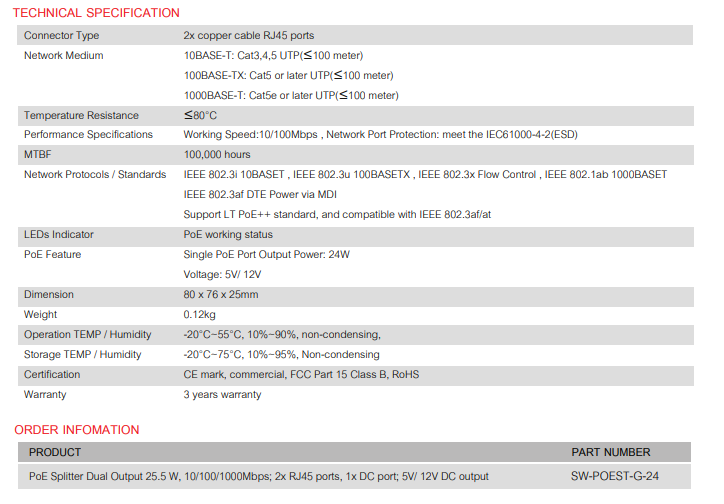

ORDER INFOMATION

FEATURE
– Supply power to 5 classes Ethernet network surveillance cameras
– 2x 10/100/1000Mbps R.J45 ports
– Support network port, lightning-proof power input port (the secondary
lightning protection)
– PoE power supply method: 4/5(+),7/8(-) or 1/2(+),3/6(-)
– Support LT PoE++ standard, and compatible with IEEE802.3af /at standard.
– Single PoE port output power is 24W, the voltage is 5V/ 12V.
-No fans, natural cooling, small and exquisite, no noise design, suitable for
desktop or wall
OVERVIEW
This single port 10/100/1000M 24W high power PoE injector is developed by Focomm R&D team. It supports LT PoE++ standard and can be
backward compatible with IEEE 802.3af/at PoE standard. The maximum PoE output power is 24W, the total power is 65W. There are 2x R.J45 ports.
One is linked the upper switch or other upper network devices. And another network port is used as the port that integrated PoE power output and
network data. It’s more convenient for installation and use of high power network dome cameras or other high power IP devices.
PoE injector can provide a simple and economical solution for high performance Ethernet PoE power supply and data communication.
Easy to use and install, superior performance and cost-effective, which is an ideal choice for customer to improve the projects’ quality. It’s an efficient
engineering solution to meet the requirement of the reliability system and simplified installation for remote places without power supply or unable to
use Ethernet cable to supply power.
FOCOMM
