Rack Mount Drawer

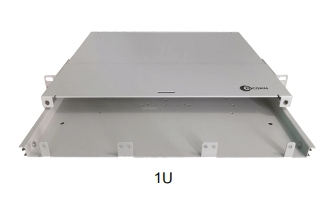

Rack Mount Drawer, 3 Snap-Plate, 6-36Fiber, 1UF-RMA-36
Rack Mount Drawer, 6 Snap-Plate, 6-72Fiber, 2UF-RMA-72

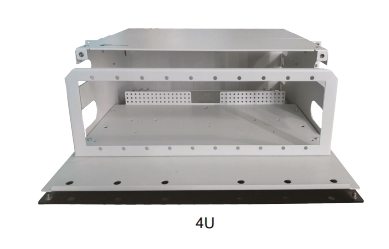

Rack Mount Drawer, 10 Snap-Plate, 6-120Fiber, 4UF-RMA-120


ㆍ Patch Panel: Single mode Duplex SC , ST , LC and FC Can be mounted to any standard
19′ or 23″ EIA rack or cabinet;
ㆍ Patch Panel: SC Adepter Plate, ST Adepter Plate , LC Adepter Plate and FC Adepter
Plate Can be separated.
ㆍA joint for connecting fiber optic cables have a minimum of 36, 72, 120
pcs per connecter;
ㆍ Can be use with multi-mode or single-mode fiber optic adaptor in the same panel.
ㆍFor vertical or primary cabling, in primary distribution rooms or cabinets,
for the administration and management of optical backbones;
* For horizontal or secondary cabling, in telecommunications rooms
(interconnect or cross-connect), for services distribution in horizontal systems;
ㆍIdea for back bones or horizontal optical systems with low density fiber.
ㆍ There is space for both front and rear. And a cap made of steel or acrylic
lock by nuts for stronger part.
ㆍ Easy to use to open or close the door.
ㆍIt can be installed in remote network locations, in environments that require
electromagnetic immunity or even for multi-user service for high performance stations.
ㆍExtended tray/drawer for added slacking of fiber patch cord in the rear of the enclosure;
ㆍSliding tray with bearing rails;
ㆍ The inside of the fiber optic tray mounting holes with screws for installing
splice tray 12-36 core;
• 2 Entrance hole for fiber optic wire, Easy-to-use
ㆍRetractable front cover provide access to connectors and facilitates management of
optical cords;
ㆍ The optic patch cord areas and storage of excess fibers remain internal to the product
providing greater protection and system security;
ㆍFront cable management provide bend radius control and cable management for optical cords;
ㆍProduct protect and corrosion resistant, for the specified conditions of use in internal
environments (EA-569)
ㆍ Made of Electro galvanize sheet steel material.
