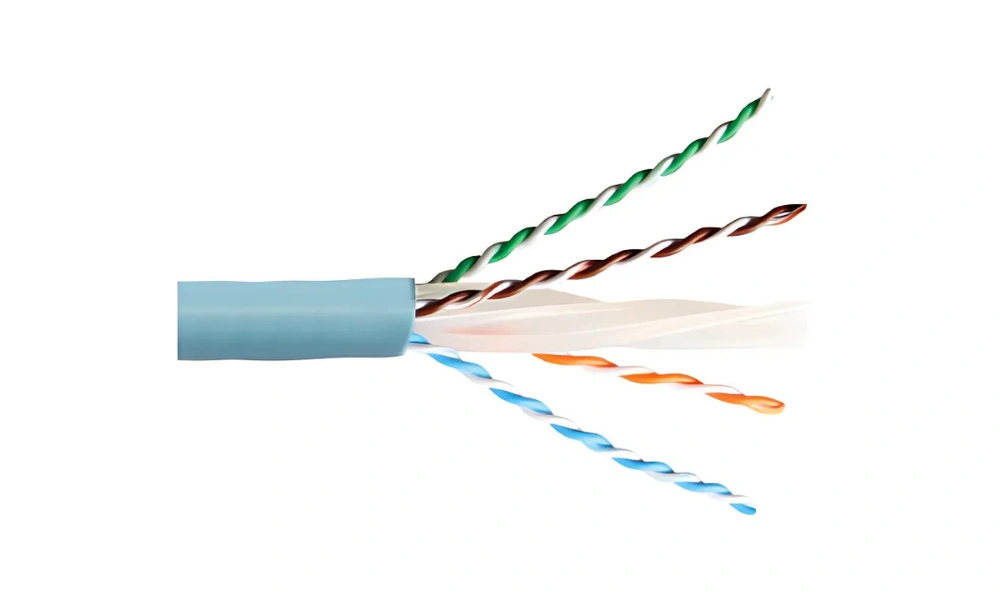

Cat6A UTP Cable 23AWG, Copper 0.57mm, 550MHz, CMR

ORDER INFOMATION

Application

10GBASE-T ( IEEE 802.3an 10Gigabit Ethernet ), 1000 BASE-T (IEEE 802.3ab Gigabit Ethernet ), 100 BASE-TX (IEEE802.3u Fast Ethernet), 10 BASE-T (IEEE 802.3 Ethernet)155/622 Mbps and 1.2Gbps ATM, 4/16Mbps Token Ring, POE, POE+(IEEE802.3af, IEEE802.3at) TP-PMD, TPDDI, ISDN, VOIP, Analog & Digital Voice, Digital & Analog Video
Standard

ANSI/TIA-568-C.2 Category 6A, ANSI/TIA-568.2-D Category 6A, ISO/ICE 11801:2002 Class EA, ISO/ICE 11801:2017 Class EA, EN 50173-1 Category 6A, ICEA S-102-700 Category 6A.EN 50288-6-1, EN 50288-10-1 NEMA WC 66. IEC61156-5,ASTM. D4566-98, ICE 60332-1, IEC61034-2, IEC60754-2,UL/CSA Listed CM,CMR, CMP and LSZH,ETL and 3P Verify to ANSI/TIA-568-C.2 CAT6 A., UL, RoHS Compliant.

Description

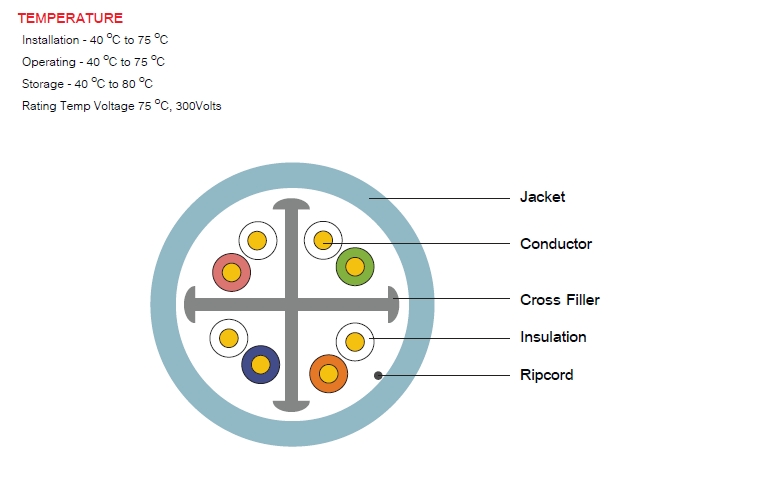

High-Performance Data Cable. Outdoor UV Rated Jacket. Self-supporting. 4 twisted-Pair cable, Using solid bare copper conductor 23 AWG, insulated with HDPE Jacket.
