UTP CAT6A Keystone Jack Toolless Type

UTP CAT6A Keystone Jack Toolless Type

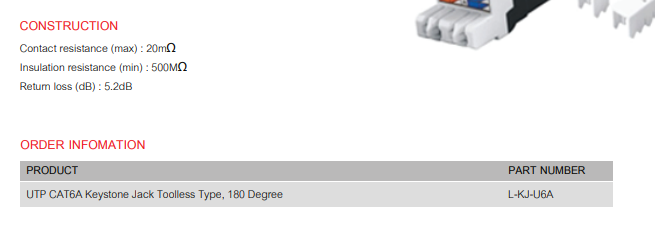

ORDER INFOMATION

DESCRIPTION
This series keystone jacks work together with high speed cables,
cords and panels to provide performance beyond proposed Category 6A
standards, a new feature of this series jack is a universal colored wiring label
that eliminates the need for separate codes for T568A/B wiring scheme.
APPLICATION
– Avallable in Cat6A, T568A/B wiring, meet or exceed TIA/EIA Cat6A requirements
– Housing : high temperature thermoplastic
– Compact jack design, 8 positions and 8 conductors
– Contact : phosphor bronze , phosphor bronze with 6 to 50p’ gold plate
– Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
– Easy to be terminated, low attenuation loss and high return loss
– High rellability and superior performance
– Available in different colors
