FEATURE
– One-way VGA video, stereo audio and KVM signals can be transmitted
through a single-core single-mode fiber
– Support VGA maximum resolution up to 1080P/60HZ
– Fiber transmission distance up to 20KM
– The device supports VGA and Audio interfaces.
– Support KVM, able to remotely control USB mouse and keyboard
OVERVIEW

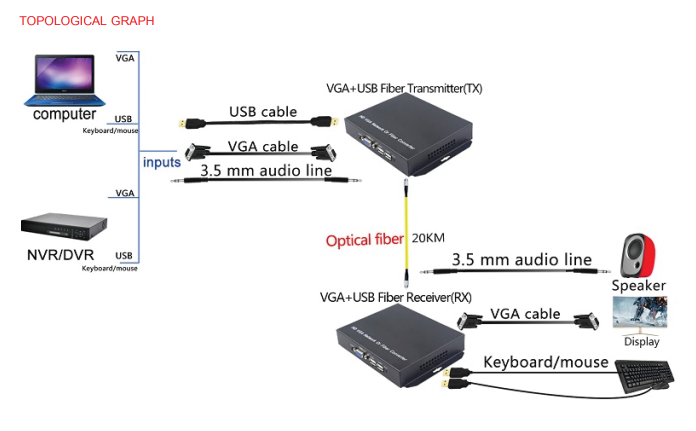

VGA with KVM high-definition digital optical transceiver is a fiber-optic transmission product that transmits VGA, Audio and keyboard
and mouse signals on single-core optical fiber; the audio, VGA and USB keyboard and mouse interfaces of the computer host are extended to
the far end via optical fiber, and the user can be far away. The terminal listens to the image and sound of the host computer in real time and can
control the front-end computer host with the mouse and keyboard. Support VGA high-definition audio and video real-time transmission,
the maximum resolution is 1080P/60HZ; the maximum transmission distance can reach 20KM, widely used in military command and control,
traffic police traffic management, energy and power supply industry, government departments, medical systems, commercial display,
Multimedia function rooms, utilities and other fields.
