Tool and Test

Visual Fault Locator

ORDER INFOMATION

Overview

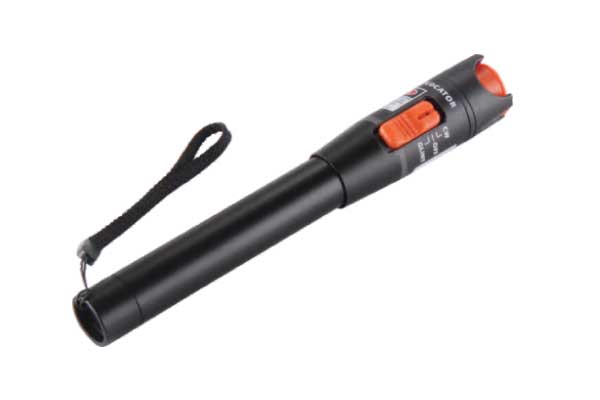

A handheld visual fault locator designed for testing and troubleshooting fiber optic cables. It is suitable for identifying breaks, bends, or faulty connections in optical fiber systems.

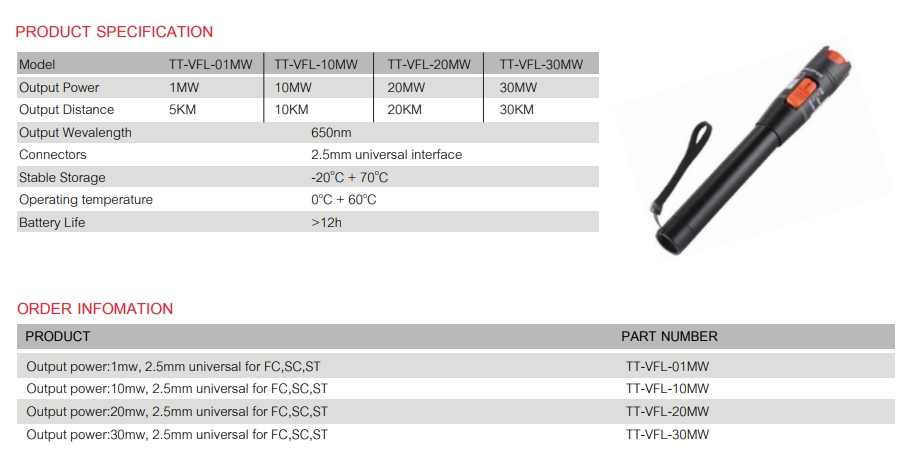

Specifications
- Output Power Options: 1mW, 10mW, 20mW, 30mW
- Detection Range: 5KM to 30KM depending on power
- Wavelength: 650nm visible red light
- Connector: 2.5mm universal interface (compatible with FC, SC, ST)
- Temperature Range:
  Storage: -20°C to +70°C
  Operation: 0°C to +60°C
- Battery Life: Over 12 hours continuous use

PRODUCT	PART NUMBER
Output power:1mw, 2.5mm universal for FC,SC,ST	TT-VFL-01MW
Output power:10mw, 2.5mm universal for FC,SC,ST	TT-VFL-10MW
Output power:20mw, 2.5mm universal for FC,SC,ST	TT-VFL-20MW
Output power:30mw, 2.5mm universal for FC,SC,ST	TT-VFL-30MW
