Wall Mount Outdoor (Metal)

Wall Mount Outdoor Fiber Optic Cabinet 96 Core(PLC Tray type)

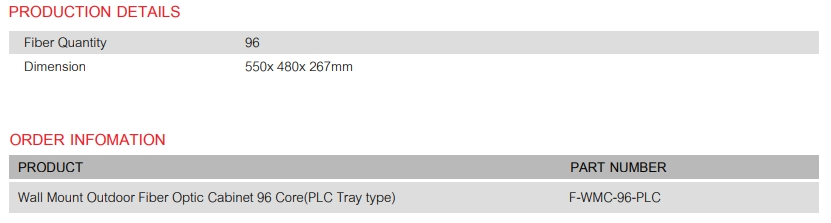

ORDER INFOMATION

OVERVIEW
Outdoor Wall-mount Fiber Optic Distribution Frame is mainly
used for connecting the outdoor optical cables, optical patch cords and
optical pigtails. It can be wall mounted or pole mounted, and facilitates
the test and refit of the lines.
FEATURES
– With steel plates can manage both single fiber and ribbon & bundle
fiber cables
– FC, LC, SC, ST output interfaces optional
– Large working space to integrate the pigtail, cables and adapters
– Made of cold-rolling steel, electrostatic spraying
– Special design ensures the excess fiber cords and pigtails in good order
– Inner components as follows:
– Fiber Optic Splice Tray: storing fiber connectors (together with the
protective components) and the spare fibers
– Fixing Device: used for fixing the fiber protective tubes, the fiber reinforced
cores and the distribution pigtails
– The brim of the box is sealed
APPLICATION
– Telecommunications subscriber loop
– Fiber to the home (FTTH)
– LAN/ WAN
– CATV
