POE SWITCH SYSTEM PRODUCTS
Web Smart managed POE switch 16x 10/100/1000M RJ45 and 2xG SFP ports Built-in 250W
Web Smart managed POE switch 16x 10/100/1000M RJ45 and 2xG SFP ports Built-in 250W

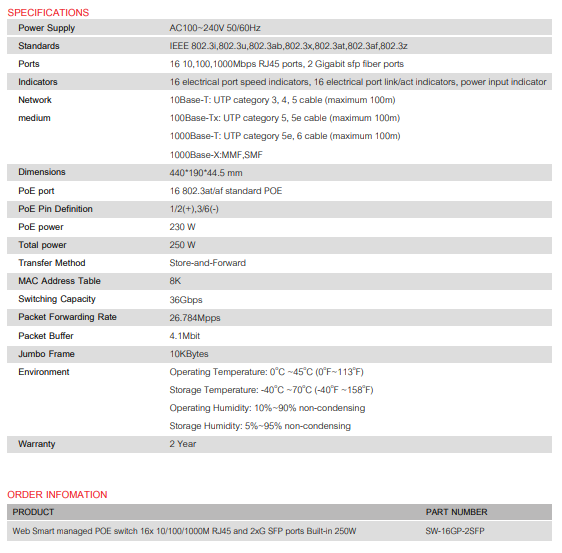

ORDER INFOMATION
OVERVIEW
SW-16GP-2SFP is a Full Gigabit Web Smart Switch with
16 10/100/1000Mbps R.J45 adaptive ports and 2 SFP fiber ports.
It provides easy-to-use WEB visual management, and all ports support
self-negotiation function to automatically adjust transmission mode and
transmission speed. It supports various L2 management functions,
IGMP Snooping, static link aggregation, Port Mirroring, 802.1Q VLAN,
Qos, etc.
FEATURE
– Provide 16 10/100/1000Mbps Auto-sensing RJ45 ports, and 2 10/100/1000Mbps SFP fiber ports.
– Support green Ethernet IEEE802.3az EEE (Energy Efficient Ethernet) management to optimize power consumptio
– 16 POE ports support 802.3af/at, per port up to 30W with 230W Poe budget.
– Provide convenient and easy-to-use WEB visual management, support MQTT cloud.
– Support MAC address automatic learning, automatic aging and aging time setting.
– Support 802.1q VLAN, Storm Control, and Port Mirroring.
– CE, ROHS, FCC, UKCA , 802.1Q VLAN
