FEATURE
– Support EPON and GPON
– Support ONU auto-discovery/Link detection/remote upgrade
of software
– WAN connections support Route and Bridge mode
– Route mode supports PPPoE/DHCP/ static IP
– Support Qos and DBA
– Support port Isolation and port vlan configuration
– Support Firewall function and IGMP snooping multicast feature
– Support LAN IP and DHCP Server configuration;
– Support Port Forwarding and Loop-Detect
– Support TR069 remote configuration and maintenance
– Specialized design for system breakdown prevention to
maintain stable system

OVERVIEW

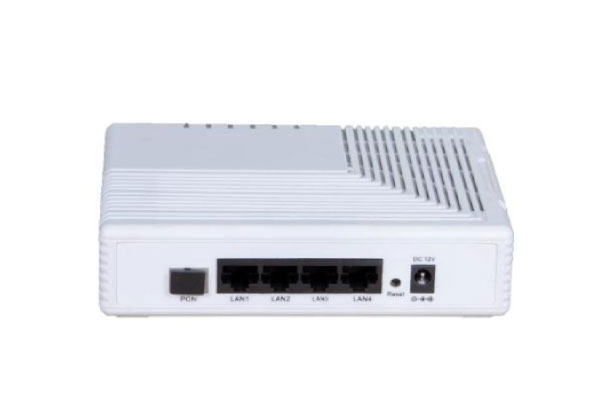

FO-414W ONT is designed as HGU (Home Gateway Unit) .The carrier-class FTTH application provides data service
access. It supplies one 10/100/1000M RJ45 port, three 10/100M RJ45 ports, and support wifi.
FO-414W is based on mature and stable, cost-effective XPON technology. It supports both GPON and EPON OLTs.
FO-414W series adopts high reliability, easy management, configuration flexibility and good quality of service (QoS)
guarantees to meet the technical performance of the module of China Telecom EPON CTC3,0 and GPON Standard of
ITU-TG.984.X 1G3F+WIFI series is designed by ZTE chipset
