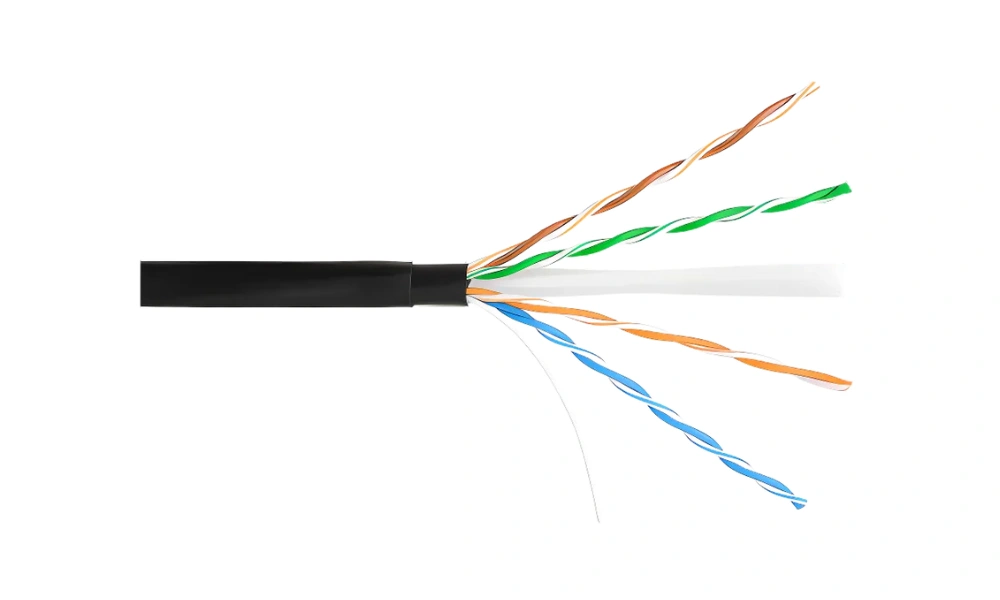

PRODUCT DESCRIPTION
High-Performance Data Cable. Can be installed both outdoors and indoors
Self-supporting.4 twisted-Pair cable, Using solid bare copper conductor 23 AWG,
Cross Filler insulated with HDPE Jacket
APPLICATION
1000BASE-T (IEEE802.3ab Gigabit Ethernet), 10/100/1000 Mbps Standard UTP 6E, 100BASE-TX
(IEEEB02.3 f/u/ab Fast Ethemet), 10BASE-T(IEEE802.3 Ethernet) 52/155/622 Mbps and
1.2Gbps ATM, 2.5G/5G Base-T(IEEE802.3bz),
10GBASE-T(IEEE802.3an 10Gigabit Etheret, 55m),POE,POE+ (IEEE802.3af,IEEE802.3at)
TP-PMD, 100 Mbps TPDDI, ISDN, VOIP, Analog & Digital Voice,Digital & Analog Video, 10
BASE-T,Broadband video, Digital & Analog For data,video& audio application, 4/16Mbps
Token Ring, HD BaseT 2.0 standard, Baseband,Broadband.
STANDARD
– ANSI/TIA-568-C.2 Category 6, ANSI/TIA-568.2-D,ANSI-TIA/EIA-568-B.2 Category 6,
– ISO/IEC 11801:2002 Class E, ISO/IEC 11801:2017 Class E,
– IEC 61156-5, IEC 60332-1
– EN 50173-1 Category 6, EN 50288-6-1
– ICEA S-102-700 Category 6,
– NEMA WC 66, ASTM, D4566-98,
– ULCSA Listed CM,CMR.CMP and LSZH, ETL and 3P Verify to
TIA-568-C.2 CAT6
– UL444 , NEC80O , RoHS Complian.
TEMPERATURE
Installation – 40 ‘C to 75 C
Operating – 40 ‘C to 75 *C
Storage – 40 C to 80 c
Rating Temp Voltage 75 ‘C, 300Volts
