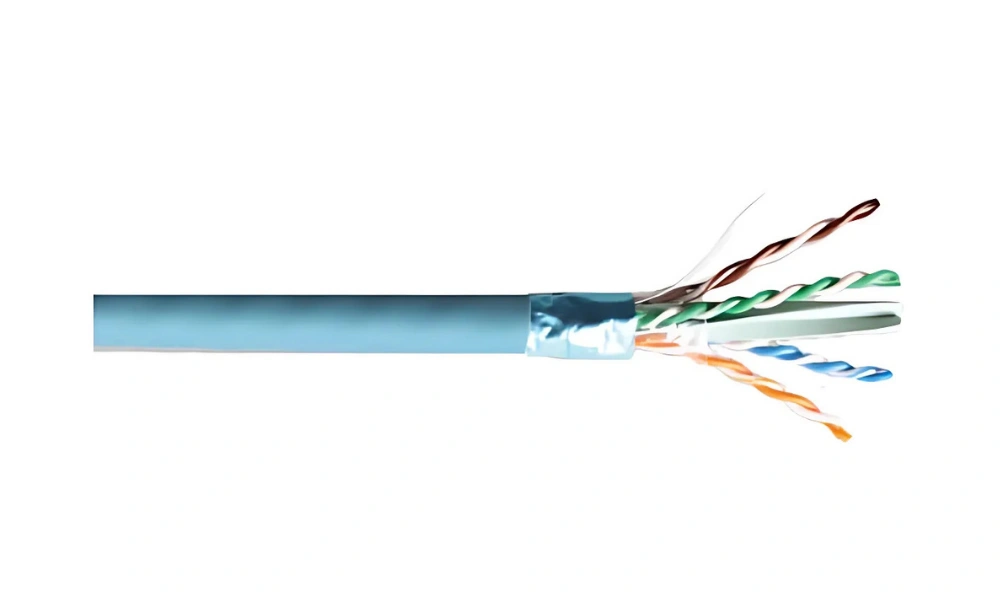

Cat6A UTP Cable 23AWG, Copper 0.57mm, 550MHz, FTP

Mini IP SC

ORDER INFOMATION

Application

10GBASE-T ( IEEE 802.3an 10Gigabit Ethemet ), 1000 BASE-T (IEEE 802. 3ab Gigabit Ethernet ), 100 BASE-TX (IEEE802.3u Fast Ethernet), 10 BASE-T (IEEE 802.3 Ethernet) 155/622 Mbps and 1.2Gbps ATM, 4/16Mbps Token Ring, POE, POE+(IEEE802.3af, IEEE802.3at) TP-PMD, TPDDI, ISDN, VOIP, Analog & Digital Voice, Digital & Analog Videa 2.5G/5G Base-T(IEEE802.3bz)
Standard

ANSI/TIA-568-C.2 Category 6A, ANSI/TIA-568.2-D Category 6A, ISOIEC 1 1801:2002 Class EA, ISO/IEC 11801:2017 Class EA, EN 50173-1 Category 6A, ICEA S-102-700 Category 6A.EN 50288-6-1, EN 50288-10-1,NEMA WC 66, IEC61156-5 ASTM, D4566-98, ICE 60332-1, IEC61034-2, IEC60754-2.UL/CSA Listed CM,CMR, CMP and LSZH,ETL and 3P Verify to ANSI/TIA-568-C.2 CAT6 A, UL, RoHS Compliant.

Description

High-Performance Data Cable. Outdoor UV Rated Jacket. Self-supporting. 4 twisted-Pair cable, Using solid bare copper conductor 23 AWG, insulated with HDPE Jacket
