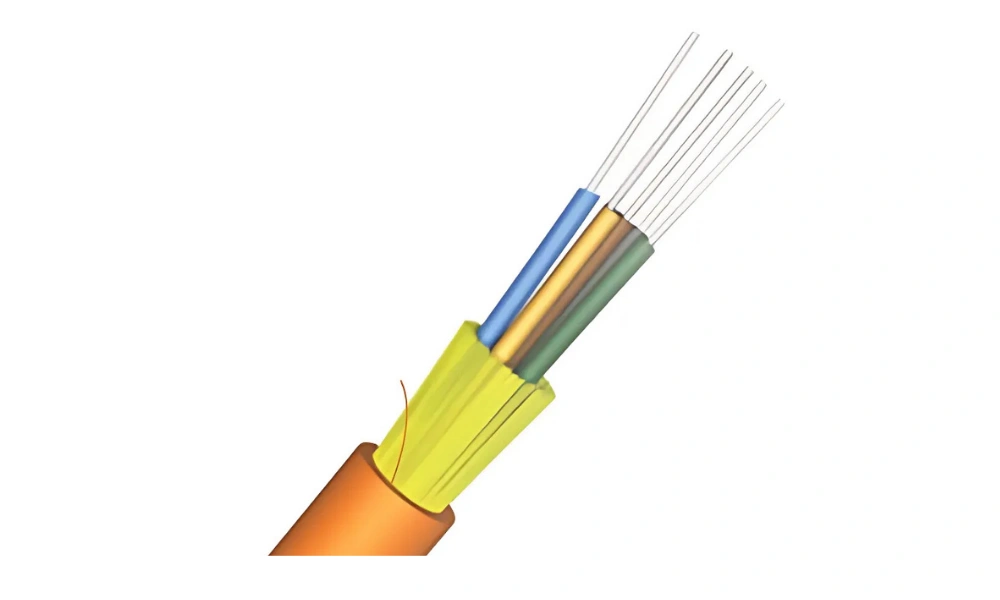

Indoor Cable Series SM / MM​

Distribution (Riser) (F-DX-XX)

ORDER INFOMATION

  • Application

    • Application support IEEEE802.3, ATM, FDDI, fiber channel, CATV,CCTV FTTX or other
    • As building to building connecting cable
    • As indoor soft cable along the wall, ceiling, between layers and in conduits
    • As pigtails, movable connectors and patch cords for communication equipment STANDARD
    • IEEE802.3 (LAN, Ethernet Fast Ethernet, Gigabit Ethernet and 10Gigabit Ethernet) ATM, FDDI, FTTX, FiberChannel, CATV,Communication
    • ANSI/TIA-568-C.3, ANSI/ICEA 596, ANSI/TIA/EIA-568-B.3ISO/IEC 11801:2002
    • Telcordia(Bellcore) GR-409-CORE
    • ITU-TG.652D (Singlemode), ITU-TG.651(Multimode), ITU-TG657A2
    • IEC 60332-1, IEC 60332-2& IEC 60332-3, IEC 60793/60794,EIA/TIA-455
    • ULListed E337497RoHS Compliant 2002/95/EC

PRODUCT PART NUMBER
Distribution Cable 6 Core, 50/125MM
F-D5-06
Distribution Cable 12 Core, 50/125MM
F-D5-12
Distribution Cable 6 Core, SM
F-D9-06
Distribution Cable 12Core, SM
F-D9-12
Datasheet
Contact Us

  • Packing and Drum

    The cable is rounded on a non-returnable wooden drum. Both ends of cable are securely fastened to drum and sealed with a shrinkable cap to prevent ingress of moisture. The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.

    • Cable type and number of optical fiber
    • Manufacturer name
    • Month and Year of Manufacture
    • Cable length
    The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%

Fiber type Single mode Multi-mode
Core Diameter (µm)
9/125 µm
250
62.5/125 µm (OM1)
50/125 µm (OM2)
50/125 µm (OM3)
Buffer diameter (µm)
900
Fiber count
6
12
Outer Diameter D*H (mm)
5.2±0.2
6.8±0.2
Nominal weight (kg/km)
23
38
Strength member
Aramid yarn
Sheath
Material
Polyvinyl chloride (PVC)
Thickness
1.5±0.3mm
Cable diameter (mm)
4.8-6.8
Cable weight approx. (Kg/km)
25-45
Min bending radius Static
Installation
20D
Operation
10D
Max tensile load (N)
Installation
1800N
Operation
600N
Max crush resistance
1000
Storage temperature
-40°C – +75°C
Installing temperature
-20°C – +70°C
Fiber type Characteristics
Attenuation
850nm
≤23 ≤25 ≤27
[dB/km]
1300nm
≤0.55≤0.70≤0.80
[dB/km]
Overfilled modal bandwidth
850nm
≥500≥400≥400
[MHz-km]
1300nm
≥1000≥800≥800
[MHz-km]
Numerical aperture (NA)
0.200 ±1.015
Group index of refraction (typical)
850nm
1.482
Backscatter characteristics
1300nm
Step (mean of bidirectional measurement)
≤0.10
[dB]
Irregularities over fiber length and point discontinuity
≤0.10
[dB]
Different backscatter coefficient (bidirectional measurement)
≤0.08
[dB/km]
Core diameter
50±2.5
[µm]
Cladding diameter
12.50±1.0
[µm]
Cladding non-circularity
≤0.10
[µm]
Coating diameter
242±7
[µm]
Coating/cladding concentricity error
≤12.0
[%]
Coating non-circularity
≤6.0
[µm]
Core/cladding concentricity error
≤1.5
[dB/km]
Environmental characteristics
850nm, 1300nm
[dB/km]
Temperature dependence,induced attenuation
-60 *C -+85*C
≤0.10
[dB/km]
Temperature-humidity cycling,induced attenuation
-10C-+85*C.90% R.H
≤0.20
[dB/km]
Damp heat dependence,induced attenuation
85*C.85% R.H 30 days
≤0.20
[dB/km]
Water soak dependence , induced attenuation
20 ‘C,30 days
≤0.20
[dB/km]
Proof test
offline
≤9.0
[N]
≥1.0
[%]
≥100
[KPS]
Bending dependence
850nm,1300nm
Induce attenuation
100 turns, 75mm diameter
≤0.50
[dB]
Coating strip force
Typical average force
1.7
[N]
Peak force
≥1.3 ≤8.9
[N]
Dynamic stress corrosion susceptibility parameter (nd,Typical)
≥27
