Fiber Optic Accessories

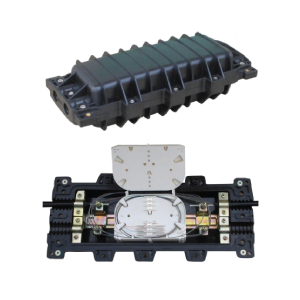

F.O. Splice Closure In-Line Type 48, 96 Core

ORDER INFOMATION

  • Description

    F-CSXX-IL provide with 4 fiber cable in-out round ports and the cable diameter is from O10-022. It canbeusedin aerial, duct, and direct buried application. This product is made from the high-quality and with themechanicalsealing structure filled with the sealing material. The external component and fastening piece are all madefromthe high-quality stainless steel. It can be opened after sealing.

  • Features

    • The closure can be used in duct, buried, overhead etc.
    • High quality impact material.pp and internal is ABS
    • Easy open tray. 4.Fiber storage with metal bracket. 5.Modular fiber management system
    • Cable diameter range: 9~22
    • Sealing way of cables:Mechanical seaing by silicon rubber
    • IP rating is IP68
    • Temperature: -30C – +60C Atmospheric Pressure:70-106Kpa
    • Material:Higt strength polypropylene (PP)
