FIBER OPTIC ACCESSORIES

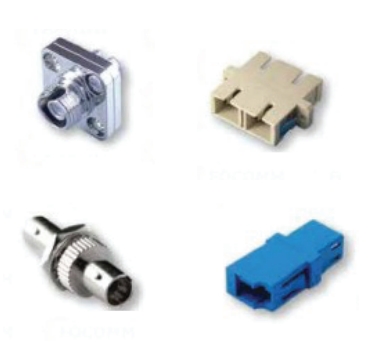

SIMPLEX/DUPLEX ADAPTOR SM/MM

FC Adapter SM/MM

FC-Adapter
2.SIMPLEX-DUPLEX

ORDER INFOMATION

FEATURES
ㆍ Compatible with FC, SC standard & ST. connector.
ㆍPC ferrule with 20mm radius fast polishing.
ㆍ 8 degree angle PC ferrule with ultra low insertion loss.
ㆍLow back reflection loss.
ㆍEasy to handle Environmentally stable.
ㆍ Typical Insertion Loss Single-mode: 0.15dB, Multi-mode: 0.3dB.
ㆍ Typical Return Loss (*), Single-mode: 50dB, Multi-mode: 20dB
ㆍOperating Temperature :-40~+75C
ㆍStorage Temperature: -55~+85*C
ㆍ Telecommunications.
ㆍ Local area network.
ㆍ Fiber optic sensors.
ㆍ Testing instruments.
ㆍ CATV

DESCRIPTION
The Fiber Optic adapter utilises a ceramic (Zirconia) sleeve for precise fiber ferrule alignment Multimode and Single mode version
comes with a phosphor bronze sleeve. The adapter housing is mase of zine die-casting.
