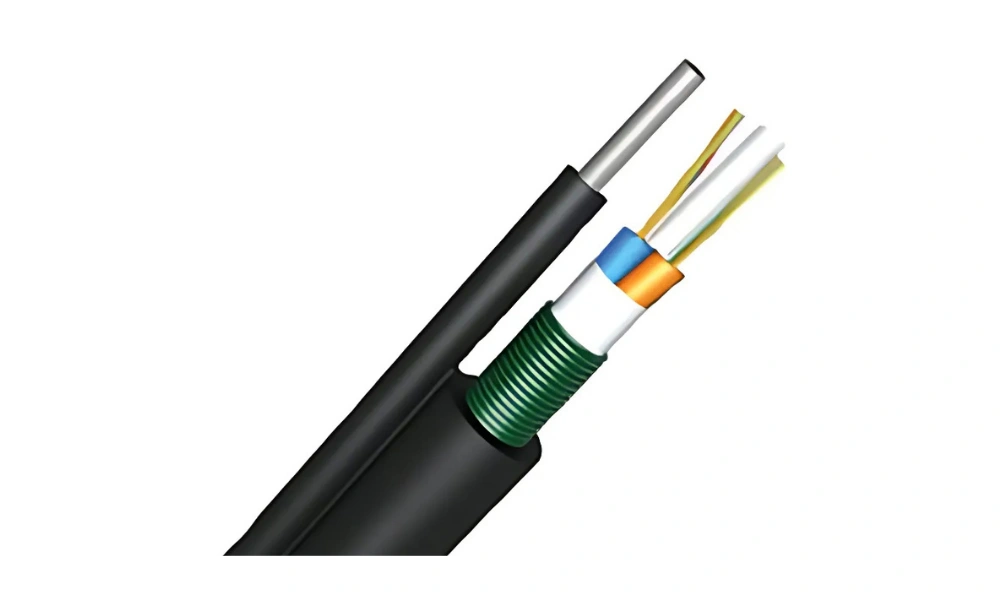

OUTDOOR DROP WIRE ARMORED SM

Multi tube, Outdoor Drop wire Armored SM F-ML-DWA9-XX

ORDER INFOMATION

Properties
- Low attenuation, dispersion and special control of excess fiber length ensure excellent mechanical and envelopment properties.
- Filling compound and water block material validly prevent water penetration.
- Waterblocking tape and water Blocking yarns.
Application
- Special design for used together with outdoor and indoor
- All dielectric construction
- Muti-mode or single-mode fiber optic
- ATM, FDDI, CATV, FTTX, communication
Characteristic
- Messenger steel wire
- Filling compound
- Optical fibers
- Water Blocking Tape
- Aramid yarns/E-Glass yarn
- Corrugated steel tape
- Outer jacket HDPE (LSZH) with rodent protection
- Rip cord Polyester Cord 2pcs
Standard

ISO/IEC 11801:2002,ANSI/TIA-568-C.3 ANSI/TIA/EIA-568-B.3, ANSI/ICEA 696&596, TIA/EIA-598-A, Telcordia GR-409-CORE, Telcordia GR-20-CORE, IEC 60793, IEC 60793-2,IEC 60794-1-2, IEC 61034-2, IEC 60754-2, IEC 60332-1-2,IEC 60332-1,ITU-T G.652D (Single mode), ITU-T G.651 (Multimode), EN 50173-1, ITU-TG 657A2, RoHS Compliant 2002/95/EC, IEC 60793-2 B 1.3, TIS 2166-2548, ICEA 640 , ANSI/TIA-568.3-D
