FIBER OPTIC ACCESSORIES
Patch Cord FLEX Angle Boot
F-PC-F-FAXXXXX-X-DX
STANDARD
EC60874-14: FO4 (15C5973): FOOS-3.T1A/E1A-604-3A Teicordia GR-326-4 CORE Comoliant UL94 V-O rated plastic
housing or metal housings evailable Standard and Telcardia styie high spec boots in vanious colors Rors.comoiant
| PRODUCT | PART NUMBER |
| Patch Cord flex-angle boots, LC-LC, SM 9/125um, Duplex, 3M | F-PC-F-FALCLC9-3-DX |
| Patch Cord flex-angle boots, LC-SC, SM 9/125um, Duplex, 3M | F-PC-F-FALCSC9-3-DX |
| Patch Cord flex-angle boots, SC-SC, SM 9/125um, Duplex, 3M | F-PC-F-FASCSC9-3-DX |
| Patch Cord flex-angle boots, LC-LC, MM 50/125um, Duplex, 3M | F-PC-F-FALCLC5-3-DX |
| Patch Cord flex-angle boots, LC-SC, MM 50/125um, Duplex, 3M | F-PC-F-FALCSC5-3-DX |
| Patch Cord flex-angle boots, SC-SC, MM 50/125um, Duplex, 3M | F-PC-F-FASCSC5-3-DX |
ORDER INFOMATION
DESCRIPTION

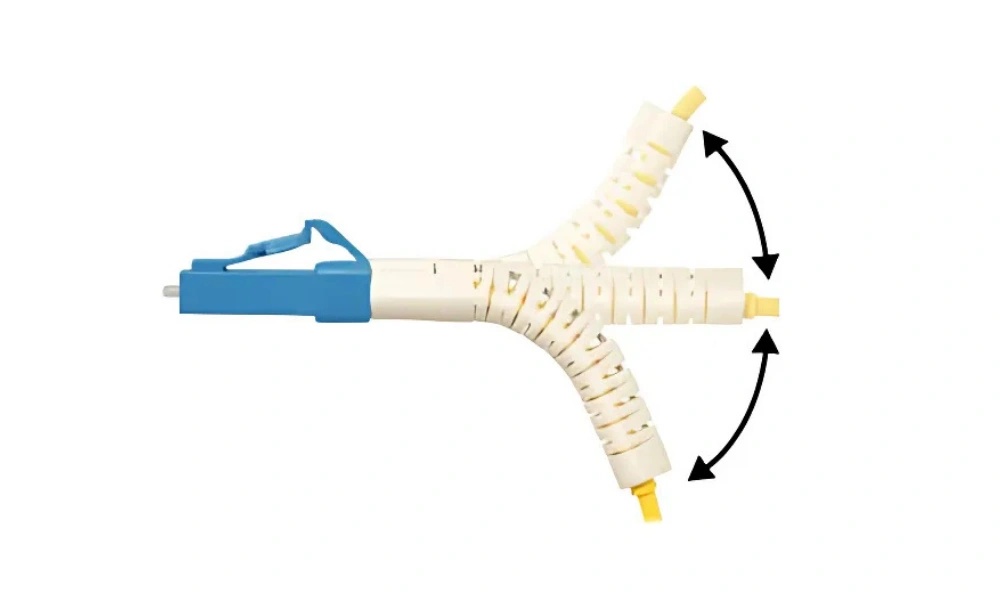

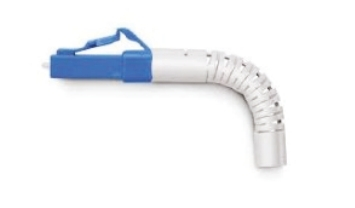

FOCOMM flex angle boots for LC/SC fiber optic connectors are
available on any single-mode or multimode patch cord. They are designed
so the installer can pre-bend the boot into any direction or angle. This position
is maintained for optimal network performancebut, can be reshaped at any
time or straightened for connector disconnect. This enables perfect installation
of the connector in unique applications such as, tight constraint areas or high
density environments. These fiber optic patch cords with LC flex boots
ideal for cable management situations where additional fiber bend
protection desired.
FEATURES
ㆍLC /SC UPC Connector
ㆍ0 -90 Degree Bend
ㆍPVC Jacket Options
ㆍIdeal for High Density Networks
ㆍCompatible with FC, SC standard & ST. connector.
ㆍPC ferrule with 20mm radius fast polishing.
ㆍ 8 degree angle PC ferrule with ultra low insertion loss.
ㆍLow back reflection loss. Easy to handle Environmentally stable.
ㆍ Typical Insertion Loss Single-mode: 0.08dB – 0.20dB , Multi-mode: 0. 15dB.
ㆍ Typical Return Loss Single-mode: PC/UPC 50dB , APC 65 dB ,Multi-mode: N/A
ㆍOperating Temperature:-40~+75 ‘C
ㆍStorage Temperature: -55~+85 ‘C Telecommunications.
ㆍLocal area network.
ㆍFiber optic sensors.
ㆍ Testing instruments.
ㆍCATV
ㆍDurability 0.1 dB Typical change, 500 matings
