FIBER OPTIC ACCESSORIES

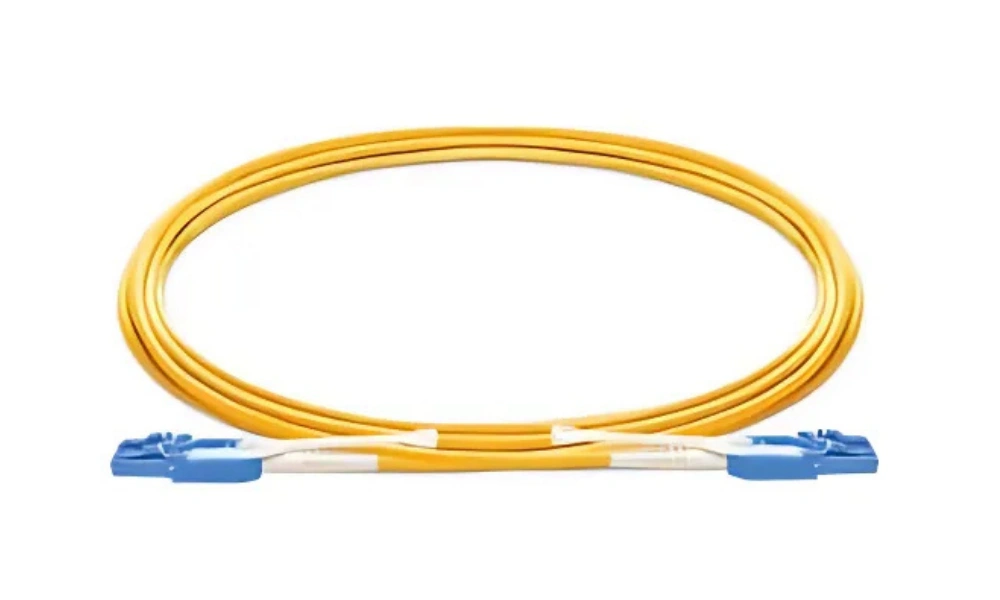

Patch Cord PUSH -Pull TAB
F-PC-F-PPXXXXX-X-DX
DESCRIPTION
FOCOMM High Density LC-SC Push-pull Tab Fiber Optic Patch Cable is a totally unique design which can increase panel density to its
highest possible, and the lever design utilizes a flexible “push-pull tab” allowing for the connector to be disengaged easily from densely loaded
panels without the need for special tools, allow users easy accessibility in tight areas when deploying in data center applications.
| PRODUCT | PART NUMBER |
| Patch Cord LC-LC, SM 9/125um, Push-Pull Tab, Duplex, 3M | F-PC-F-PPLCLC9-3-DX |
| Patch Cord LC-SC, SM 9/125um, Push-Pull Tab, Duplex, 3M | F-PC-F-PPLCSC9-3-DX |
| Patch Cord SC-SC, SM 9/125um, Push-Pull Tab, Duplex, 3M | F-PC-F-PPSCSC9-3-DX |
| Patch Cord LC-LC, MM 50/125um, Push-Pull Tab, Duplex, 3M | F-PC-F-PPLCLC5-3-DX |
| Patch Cord LC-SC, MM 50/125um, Push-Pull Tab, Duplex, 3M | F-PC-F-PPLCSC5-3-DX |
| Patch Cord SC-SC, MM 50/125um, Push-Pull Tab, Duplex, 3M | F-PC-F-PPSCSC5-3-DX |
ORDER INFOMATION
FEATURES
ㆍLC /SC UPC Connector
ㆍPush-pull Tab
ㆍ Free-floating ceramic ferrule
ㆍEasy to release trigger connector
ㆍ Low insertion loss and reflection loss
ㆍHigh-Speed, High-Bandwidth and Low-Cost
ㆍROHS, IEEE 802.3ae and TIA LOMMF compliant
ㆍStackable adapters and high precision alignment
ㆍ60% increase in density
PERFORMANCE
ㆍ Typical Insertion Loss Single-mode: 0.15dB, Multi-mode: 0.3dB.
Typical Return Loss (*), Single-mode: 50dB,Multi-mode: 20dB
ㆍOperating Temperature:-40~+85 ‘C
ㆍStorage Temperature: -45~+85 ‘C
STANDARD
ㆍISO/IEC 11801:2002 ,ANSI/TIA-568-C.3, EIA/TIA-455,IEC 60793, IEC
60794, IEC 60794-2-30, ITU-T G.652D (Singlemode),ITU-T G.651
(Multimode), RoHS Compliant, GR-326
APPLICATION
. Telecommunication
ㆍComputer networks
ㆍCATV networks
ㆍ Active device termination
*Instrumentation
