FIBER OPTIC ACCESSORIES

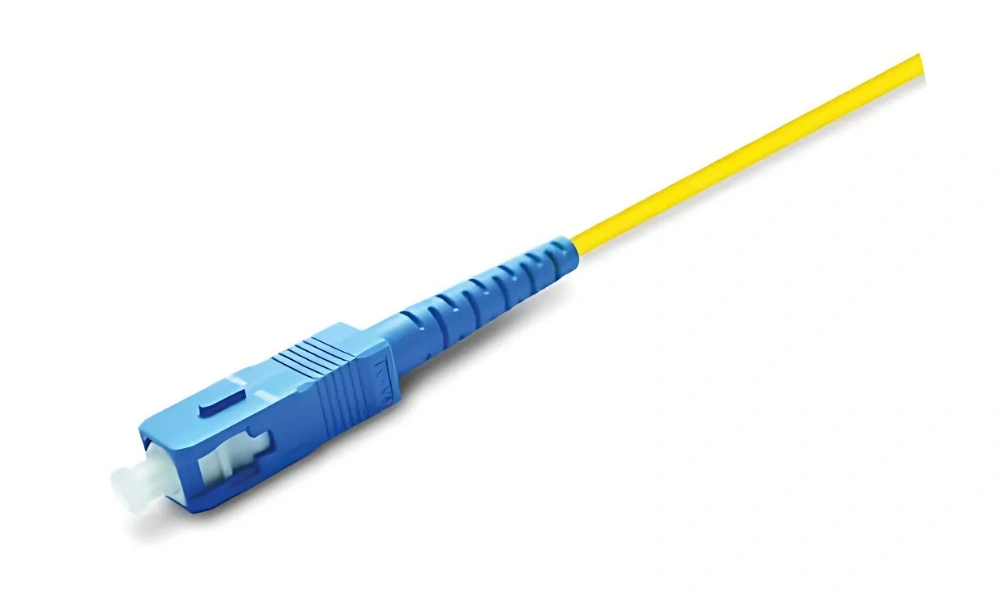

Pigtail SC SM/MM
– The style is diverse, the interface is complete
– Low insertion loss and added loss
– Height of attenuation
– High back loss, small volume, light weight
– End-face geometry and quality superior than IEC and Telcordia standards.
– LSZH, OFNP, OFNR cable jacket.
– Mechanical performance: IEC 61754-4 standard
– RoHS and REACH materials compliant.
– Optical fiber communication systems engineering
– Fiber optic data communication network
– Fiber CATV engineering
– Other optical technology tests
ISO/IEC 11801:2002 ,ANSI/TIA-568-C.3, ANSI/TIA-568.3-D, EIA/TIA-455,IEC 60793, IEC 60794-2-30, IEC 61300,IEC 61754-4,IEC 61755-
3,ITU-TG.652D (Singlemode),ITU-T G.657A2 (Singlemode OS2),ITU-T G.651(Multimode), RoHS Compliant, GR-326
|Pigtail FC, SM 9/125um (900um Jacket)||F-PT-FC9-0.9mm|
|Pigtail FC, SM 9/125um (2mm Jacket)||F-PT-FC9-2mm|
|Pigtail FC, MM 50/125um (900um Jacket)||F-PT-FC5-0.9mm|
|Pigtail FC, MM 50/125um (2mm Jacket)||F-PT-FC5-2mm|
