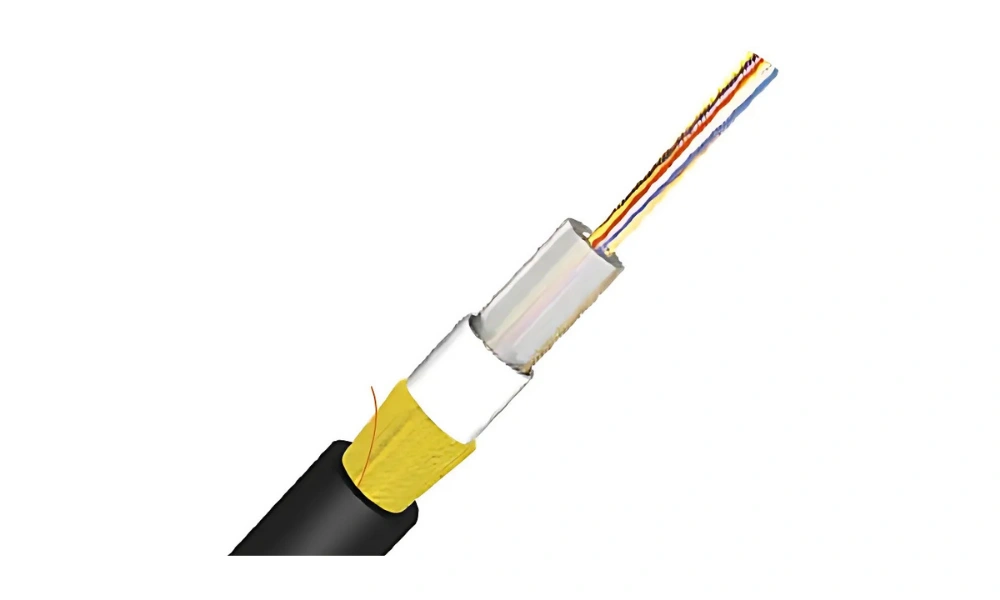

SINGLE TUBE, INDOOR/OUTDOOR CABLE SM/MM

Single Loose Tube Indoor/Outdoor (All Directic) F-SL-IOXX-XX-XX

ORDER INFOMATION

  • Properties

    • Low attenuation, dispersion and special control of excess fiber length ensure.
    • excellent mechanical and envelopment properties.
    • Filling compound and water block material validly prevent water penetration.

  • Application

    • Optical transmission cables for transmission equipment, data processing equipment.
    • also suitable for general cabling.
    • Laying method : Conduit, aerial, direct buried, shelf.
    • Temperature range --40 °C ~ + 70 °C.

  • Standard

    • ATM, FDDI, FTTX, Fiber Channel,CATV, Communication ISO/IEC 11801:2007, ISO/IEC 11801:2011(Ed.2.2)
    • ANSI/TIA/EIA-568-B.3, ANSI/ TIA-568-C.3, ANSI/TIA-568.3-D, ANSI/ICEA 640
    • Telcordia(Bellcore)GR-20CORE, GR-409-CORE
    • ANSI/ICEA 596, ICEA696, IEC61034-2, IEC60754-2, IEC60793, IEC60794-1-2
    • ITU G.652D, ITU-TG 657A2
    • TIA/EIA-598-C (Rev.TIA/EIA-598-A), EIA-359-A
    • IEEE802.3z, IEEE802.3ae, IEEE802.3 (LAN, Ethernet Fast Ethernet, Gigabit Ethernet and 10 Gigabit Ethernet 40-100 Gbps)
    • RoHS compliant
    • TISI-2165
    • Made in Thailand : MiT

Datasheet
Contact Us

  • Packing and Drum

    The cable is rounded on a non-returnable wooden drum. Both ends of cable are securely fastened to drum and sealed with a shrinkable cap to prevent ingress of moisture. The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.

    • Cable type and number of optical fiber
    • Manufacturer name
    • Month and Year of Manufacture
    • Cable length
    The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%

Fiber type Single mode Multi-mode
9/125 µm (OS2)
–
62.5/125 µm (OM1)
50/125 µm (OM2)
50/125 µm (OM3)
50/125 µm (OM4)
Core Diameter (µm)
–
9
62.5
50
50
50
Cladding diameter (µm)
–
125
–
–
–
–
Coating diameter (µm)
–
250
–
–
–
–
Buffer diameter (µm)
–
900
–
–
–
–
Fiber count
–
2
–
–
–
–
Outer Diameter D*H (mm)
–
1.6*3.3
1.6*3.3
1.8*3.7
2.0*4.1
2.8*5.7
Nominal weight (kg/km)
–
5.7
5.7
6.2
8.2
13.2
Tight buffered fiber
Material Thickness
Polyvinyl chloride 0.33
(PVC)
Strength member
–
Aramid yarn
Sheath
Material Thickness
Polyvinyl chloride 0.5-0.8
(PVC)
Max tensile strength (N)
Short term
160
160
160
200
300
Long term
80
80
80
100
160
Min bending radius Static
Dynamic Static
20H / 10H
Max crush radius (n/100nm)
1000
Fiber type Characteristics
Attenuation
850nm
≤23 ≤25 ≤27
[dB/km]
1300nm
≤0.55≤0.70≤0.80
[dB/km]
Overfilled modal bandwidth
850nm
≥500≥400≥400
[MHz-km]
1300nm
≥1000≥800≥800
[MHz-km]
Numerical aperture (NA)
0.200 ±1.015
Group index of refraction (typical)
850nm
1.482
Backscatter characteristics
1300nm
Step (mean of bidirectional measurement)
≤0.10
[dB]
Irregularities over fiber length and point discontinuity
≤0.10
[dB]
Different backscatter coefficient (bidirectional measurement)
≤0.08
[dB/km]
Core diameter
50±2.5
[µm]
Cladding diameter
12.50±1.0
[µm]
Cladding non-circularity
≤0.10
[µm]
Coating diameter
242±7
[µm]
Coating/cladding concentricity error
≤12.0
[%]
Coating non-circularity
≤6.0
[µm]
Core/cladding concentricity error
≤1.5
[dB/km]
Environmental characteristics
850nm, 1300nm
[dB/km]
Temperature dependence,induced attenuation
-60 *C -+85*C
≤0.10
[dB/km]
Temperature-humidity cycling,induced attenuation
-10C-+85*C.90% R.H
≤0.20
[dB/km]
Damp heat dependence,induced attenuation
85*C.85% R.H 30 days
≤0.20
[dB/km]
Water soak dependence , induced attenuation
20 ‘C,30 days
≤0.20
[dB/km]
